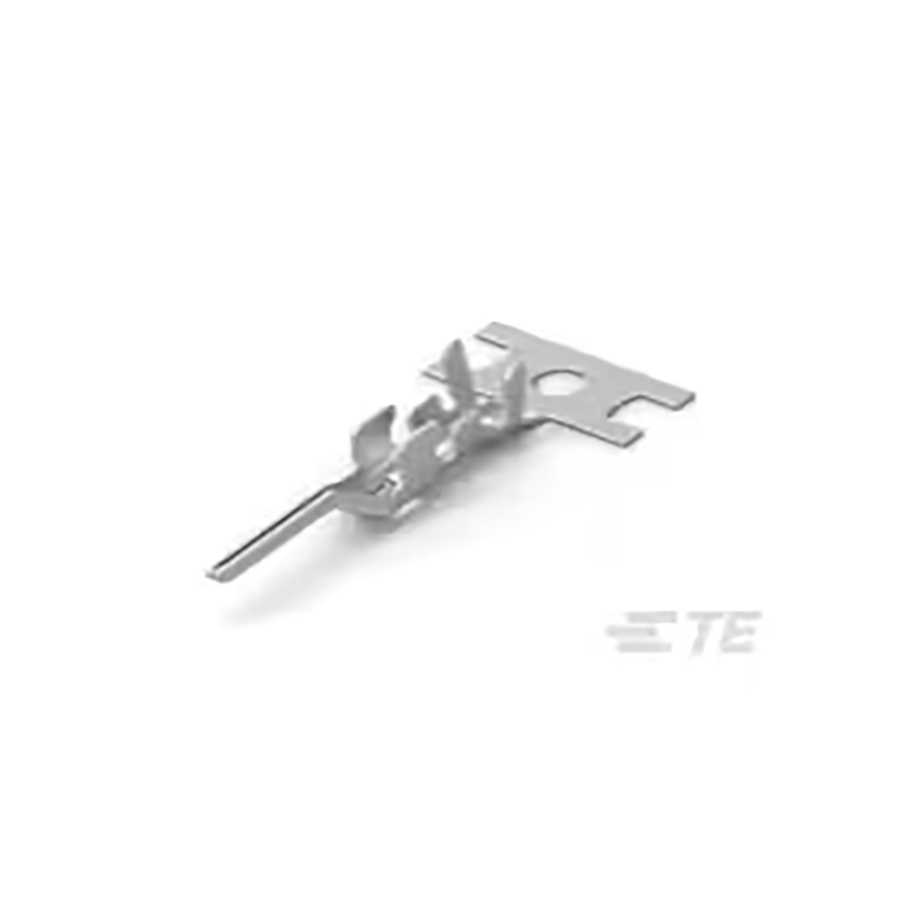

2238007-1
Manufacturer:
TE Connectivity
Mfr.Part #:
2238007-1
Datasheet:
Description:
Headers and Wire Housings Cable Pin Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 12.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.5 mm |
| Current Rating | 4.5 A |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Pin (Male) |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Pin |
| Wire/Cable Gauge | 26 AWG to 22 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Wire |
| Contact Style | Pin |
| Contact Current Rating | 4.5 A |
| Plating | Tin |
| Insulation Diameter | 1.7018 mm |
| Plating Thickness | 800 nm |
| Mating Post Length | 7.49 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Termination Post Length | |
| Termination Style | Crimp |
Stock: 25169
Distributors
pcbx
pcbxUnit Price$0.06258
Ext.Price$0.06258
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06258 | $0.06258 |
| 10 | $0.02069 | $0.20690 |
| 50 | $0.02004 | $1.00200 |
| 100 | $0.01941 | $1.94100 |
| 500 | $0.01813 | $9.06500 |
| 1000 | $0.01693 | $16.93000 |
| 3000 | $0.01527 | $45.81000 |
| 5000 | $0.01377 | $68.85000 |
